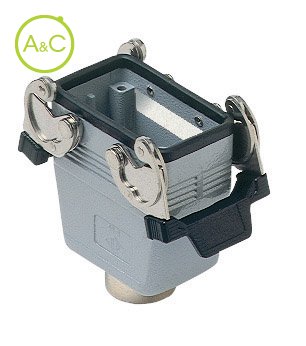

Hoods with 2 levers and gasket

  • Top entry
  • Aluminium, 1xPG16
Download Datenblatt
  • General
Article Number CMV 03 G
Protection Degree IP66
Material Housing Aluminium
Height 63.5 mm
Length 73
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CME 3+2P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 43 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CHC 10 C*
Covers with 4 pegs and gasket
