  • CN CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Terminal

  • Conductor
  • Shielding Part
Article Number CN-SAS1290
Upper Temperature +105 °C
Lower Temperature -30 °C

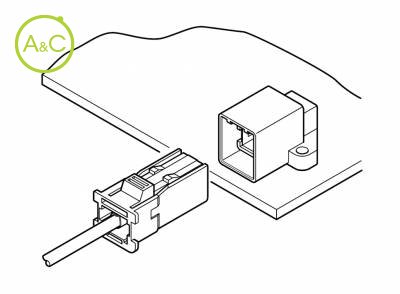

General Description Crimp Style Coaxial (Wire to Board)
Connection Type Printed Circuit Board Connectors
Pitch / Style Coaxial mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

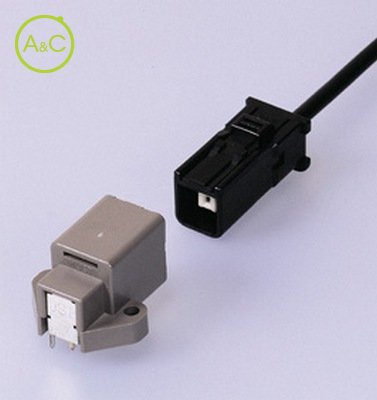

Connector for the GPS antenna system of the car navigation system. The CN connector applies the unique crimping method to the shielding meshed wires, which will result in superior high-frequency characteristics. Shielding meshed wires are crimped with the N-type crimp shape, which prevents the deflection and coming off of the meshed wires. Cost effective. Cost effective Less expensive than the conventional high-frequency connectors. Crimping method and shape Shielding meshed wires are crimped with the N-type crimp shape, which prevents the deflection and coming off of the meshed wires. Superb high-frequency characteristics This connector can keep low VSWR characteristics, while serving high-frequency characteristics. RoHS Compliant
