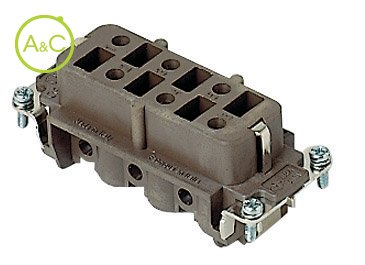

Inserts, 6P + PE, Screw terminal connections

  • Female inserts with female contacts
  • Silver plated contacts, Indirect with plate, use in temperatures up to 180°C
Download Datenblatt
  • General
Article Number CPF 06 RY
Pollution Degree 3
Number Of Poles 6
Connection Type Screw connection
Contact Type Female
Extra Information With protective conductor
With wire protection
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 180 °C
Min. Cross Section Without End Sleeve 0.5 mm²
Max. Cross Section Without End Sleeve 4 mm²
Required Housing 180°C size 77.27
Diameter Male Contact 3.5 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Material Contact Brass
Plating Of Contact Silver
Max. Rated Current 35 A
Nominal Rated Voltage 690 V
Over Voltage Category III
Rated Surge Voltage 6 kV
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CR 20*
Single code pins for 6 codings
CR 20 D*
Single code pins for 6 codings
CRM*
Male double coding and guide pins, for 16 codes
CRM D*
Male double coding and guide pins, for 16 codes
CRF*
Female double coding and guide pins, for 16 codes
CRF D*
Female double coding and guide pins, for 16 codes
CRM
Male coding and guide pin, for 72 codes
CRM D
Male coding and guide pin, for 72 codes
CRF
Female coding and guide pin, for 72 codes
CRF D
Female coding and guide pin, for 72 codes
CR 72
Single coding and guide pin, for 72 codes
CR 72 D
Single coding and guide pin, for 72 codes
