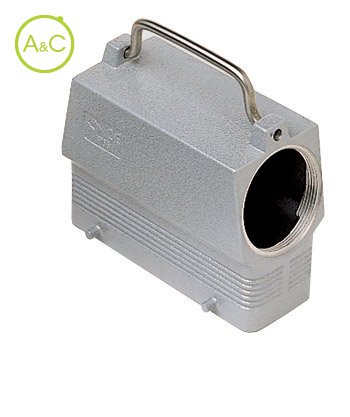

Enlarged hoods, with 4 pegs for 2 levers
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | CQO 24 |
| Protection Degree | IP66 |
| Material Housing | Aluminium |
| Height | 97 mm |
| Length | 120 |
| Extra Information |
Corrosion resistant UV resistant With interlocking device |
| Coating Housing | With powder coating |
| Required Inserts | CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE |
| Locking Mechanism | Double locking levers |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 125 °C |
| Position Cable Feed | Side entry |
| Width | 53 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
