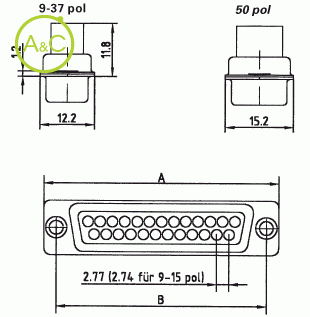

Crimp connectors DIN 41652 part

Standard version
With stamped or machined contacts

CSDT 09 P

CSDT 09 P

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Number Of Poles

9
15
25
37
50

Article Number	CSDT 09 P	CST 09 S
Number Of Contacts	9	9
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Extra Information	Fully compatible with all current market standard Insulator material flame resistant	Fully compatible with all current market standard Insulator material flame resistant
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	Crimp 0.032-0.56 mm²	Crimp 0.032-0.56 mm²

Article Number	CSDT 15 P	CST 15 S
Number Of Contacts	15	15
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Extra Information	Fully compatible with all current market standard Insulator material flame resistant	Fully compatible with all current market standard Insulator material flame resistant
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	Crimp 0.032-0.56 mm²	Crimp 0.032-0.56 mm²

Article Number	CSDT 25 P	CST 25 S
Number Of Contacts	25	25
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Extra Information	Fully compatible with all current market standard Insulator material flame resistant	Fully compatible with all current market standard Insulator material flame resistant
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	Crimp 0.032-0.56 mm²	Crimp 0.032-0.56 mm²

Article Number	CSDT 37 P	CST 37 S
Number Of Contacts	37	37
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Extra Information	Fully compatible with all current market standard Insulator material flame resistant	Fully compatible with all current market standard Insulator material flame resistant
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	Crimp 0.032-0.56 mm²	Crimp 0.032-0.56 mm²

Article Number	CSDT 50 P	CST 50 S
Number Of Contacts	50	50
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Extra Information	Fully compatible with all current market standard Insulator material flame resistant	Fully compatible with all current market standard Insulator material flame resistant
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	Crimp 0.032-0.56 mm²	Crimp 0.032-0.56 mm²

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
