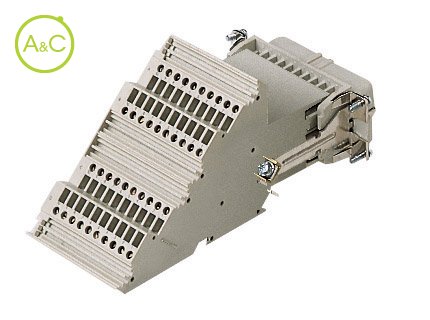

Inserts, 40P + PE, Spring terminal connection

  • Female inserts with female contacts
  • Silver plated contacts
Download Datenblatt

Side Mounting

  • Left
  • Right
Article Number CTSF 40 L*
Pollution Degree 3
Number Of Poles 40
Connection Type Spring clamp connection
Contact Type Female
Remark Only for bulkhead mounted housings
Extra Information With protective conductor
With wire protection
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Min. Cross Section With End Sleeve 0.14 mm²
Max. Cross Section With End Sleeve 1 mm²
Min. Cross Section Without End Sleeve 0.14 mm²
Max. Cross Section Without End Sleeve 2.5 mm²
Required Housing C-type size 77.27
C7 size 77.27
Simplex size 77.27
V-type size 77.27
W-Type size 77.27
EMC size 77.27
Central Lever size 77.27
LS-type size 77.27
Diameter Male Contact 1.6 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Material Contact Brass
Plating Of Contact Silver
Max. Rated Current 10 A
Nominal Rated Voltage 250 V
Over Voltage Category III
Rated Surge Voltage 4 kV
