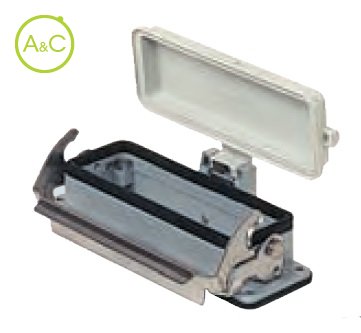

Bulkhead mounting housings

  • With single lever in stainless steel and cover in aluminium
  • Aluminium
Download Datenblatt
  • General
Article Number CVI 16 LS
Protection Degree IP65
Material Housing Aluminium
Height 29 mm
Length 115.5
Extra Information Corrosion resistant
UV resistant
With hinged lid
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CT-CTS 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CT-CTSE 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Below
Width 45.5 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
