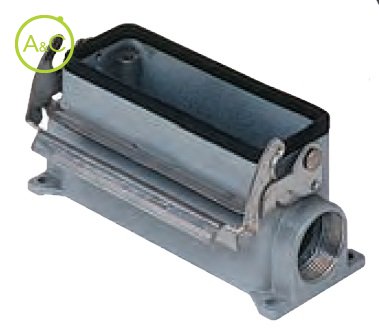

Surface mounting housings

  • With single lever in stainless steel
  • Aluminium, PG entry
Download Datenblatt

Entry

  • 1xPG16
  • 2xPG16
Article Number CVP 10 L
Protection Degree IP67
Material Housing Aluminium
Height 57 mm
Length 93.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 52 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
