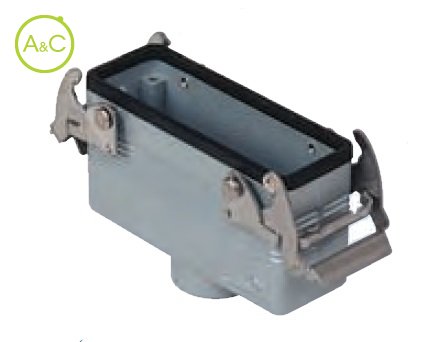

Hoods top entry

  • With gasket and 2 levers in stainless steel
  • Aluminium, 1xPG21
Download Datenblatt
  • General
Article Number CVV 16 G
Protection Degree IP67
Material Housing Aluminium
Height 63.5 mm
Length 142.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE
Locking Mechanism Double locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 57 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
