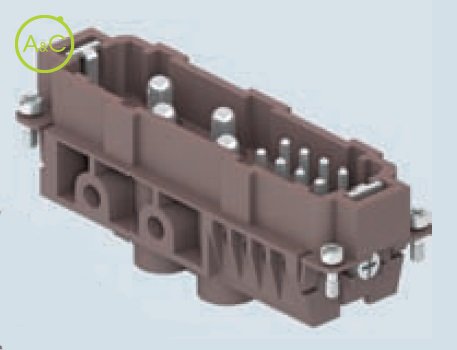

Inserts, 4+8P + PE, Screw terminal connection, use in temperatures up to 180°C

  • Male inserts with male contacts
  • Silver plated contacts, Indirect with plate, use in temperatures up to 180°C
Download Datenblatt
  • General
Article Number CXM 4/8 RY
Pollution Degree 3
Number Of Poles 4+8
Connection Type Screw connection
Contact Type Male
Extra Information With protective conductor
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 180 °C
Min. Cross Section With End Sleeve 4P: 4 mm² 8P: 025 mm²
Max. Cross Section With End Sleeve 4P: 16 mm² 8P: 2.5 mm²
Required Housing 180°C size 104.27
Diameter Male Contact 4 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Material Contact Brass
Plating Of Contact Silver
Max. Rated Current 4P: 80 A 8P: 16 A
Nominal Rated Voltage 4P: 400 V 8P: 230/400 V
Over Voltage Category II
Rated Surge Voltage 4P: 6 kV 8P: 4 kV
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CR 20*
Single code pins for 6 codings
CR 20 D*
Single code pins for 6 codings
CRM*
Male double coding and guide pins, for 16 codes
CRM D*
Male double coding and guide pins, for 16 codes
CRF*
Female double coding and guide pins, for 16 codes
CRF D*
Female double coding and guide pins, for 16 codes
CRM
Male coding and guide pin, for 72 codes
CRM D
Male coding and guide pin, for 72 codes
CRF
Female coding and guide pin, for 72 codes
CRF D
Female coding and guide pin, for 72 codes
CR 72
Single coding and guide pin, for 72 codes
CR 72 D
Single coding and guide pin, for 72 codes
