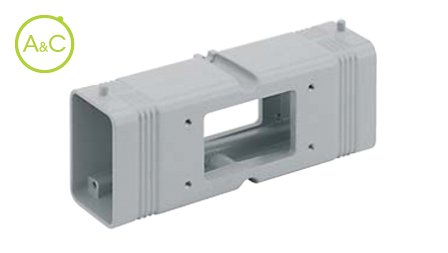

2 branch-off T-Box coupling

For 2 "44.27" size hoods with lever and gasket and 1 "44.27" size fixing side housing and one "57.27" size housing

Haben Sie Fragen zu diesem Produkt?

Download Datenblatt

Weitere Informationen über diese Marke:

Article Number	CYG 06H0606
Protection Degree	IP65
Material Housing	Aluminium
Height	43 mm
Length	150
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Housing	Enclosures size 44.27 enclosures size 57.27
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Width	60 mm

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
