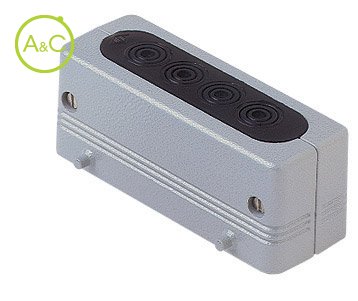

Cable passing hoods IP54
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
Ilme
- General
| Article Number | CYR 24.4 |
| Protection Degree | IP54 |
| Material Housing | Aluminium |
| Height | 47 mm |
| Length | 120 |
| Extra Information |
Corrosion resistant UV resistant With interlocking device |
| Coating Housing | With powder coating |
| Required Inserts | enclosures size 104.27 except T-Type series |
| Locking Mechanism | Double locking levers |
| Operation Lower Temperature | -40 °C |
| Operation Upper Temperature | 125 °C |
| Position Cable Feed | Top entry |
| Width | 43 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
