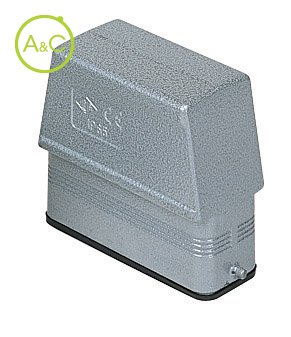

Hoods without entry, to be pierced

  • With 2 pegs for levers
  • Used with enclosures size 66.16
Download Datenblatt
  • General
Article Number CZAC 25 L
Material Housing Aluminium
Height 70.5 mm
Length 79.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Width 36 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
