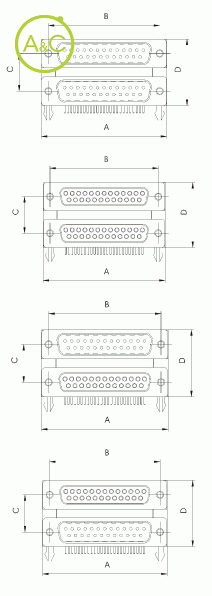

Dual port connectors

  • With metal angle brackets, locking clips and UNC 4-40 threads
  • With stamped contacts
Download Datenblatt

Number Of Poles

  • 9
  • 15
  • 25
Article Number DP 09 P 09 P R4B DP 09 S 09 S R4B DP 09 P 09 S R4B DP 09 S 09 P R4B
Number Of Contacts 9 9 9 9
Upper Temperature + 125 °C + 125 °C + 125 °C + 125 °C
Lower Temperature -55 °C -55 °C -55 °C -55 °C
Contact Plating Gold over Nickel, or selective gold Gold over Nickel, or selective gold Gold over Nickel, or selective gold Gold over Nickel, or selective gold
Contact Material Brass and Copper alloy Brass and Copper alloy Brass and Copper alloy Brass and Copper alloy
Test Voltage 1 V ~ 1 V ~ 1 V ~ 1 V ~
Insulation Resistance 1010 MΩ 1010 MΩ 1010 MΩ 1010 MΩ
Current Rating 5 5 5 5
Contact Resistance ≤ 10 m ≤ 10 m ≤ 10 m ≤ 10 m
Gender Male - Male Female - Female male - female Female - male
Insulator Material Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell Steel, tin-plated Steel, tin-plated Steel, tin-plated Steel, tin-plated
Mating And Unimating Force 0.3 - 0.7 0.3 - 0.7 0.3 - 0.7 0.3 - 0.7
Air And Creepage Distance ≥ 0.9 mm, VDE 0110 rated ≥ 0.9 mm, VDE 0110 rated ≥ 0.9 mm, VDE 0110 rated ≥ 0.9 mm, VDE 0110 rated
Termination Type Dip solder 90° Dip solder 90° Dip solder 90° Dip solder 90°
Quality Class Class 3 = 50 mating cycles Class 3 = 50 mating cycles Class 3 = 50 mating cycles Class 3 = 50 mating cycles
Height Between D-sub Connectors 15,88 15,88 15,88 15,88
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
