High voltage card edge connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 1
| Article Number | E01B-CAL-2 |
| Number Of Contacts | 1 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | CCFL Tube Connector |
| Connection Type | Printed Circuit Board Connectors |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 300 V |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

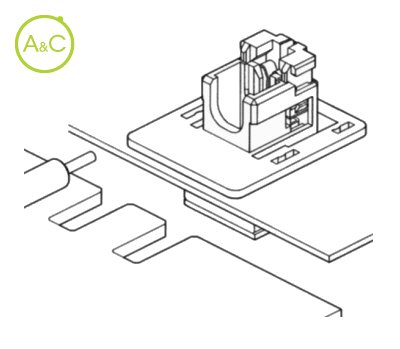

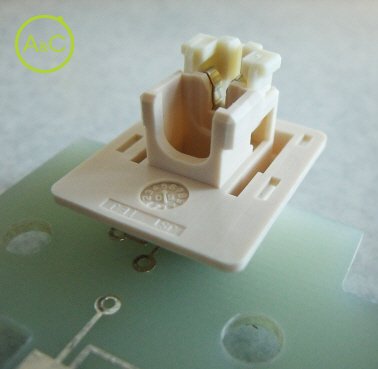

CA Connector is a card edge connector to connect between outer lead of CCFL tube and inverter PCB, it also withstands high voltage. It is used for power supply of LED backlight in Liquid Crystal Display (LCD) Television sets.
Withstands high voltage
It is a ZIF type connector and the CCFL tube can be used as it is
Soldering for CCFL tube is not required
EC Directive 2002/95/EC (the RoHS Directive) - Compliant
