Plug Housing For Socket Contact

EL CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	ELP-02V
Number Of Contacts	2
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style
Applicable Wire Size	͠͠ mm²
Connection Type	Wire to Wire Connectors
Pitch / Style	4.50 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	300 V
Remark	Secure locking device
Extra Information	/

Article Number	ELP-03V
Number Of Contacts	3
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style
Applicable Wire Size	͠͠ mm²
Connection Type	Wire to Wire Connectors
Pitch / Style	4.50 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	300 V
Remark	Secure locking device
Extra Information	/

Article Number	ELP-04NV	ELP-04V
Number Of Contacts	4	4
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-25 °C	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style	4.5mm Pitch Disconnectable Crimp Style
Applicable Wire Size	͠͠ mm²	͠͠ mm²
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	4.50 mm	4.50 mm
Rated Current (ac/dc)	10 A	10 A
Rated Voltage (ac/dc)	300 V	300 V
Remark	Secure locking device	Secure locking device
Extra Information	Without lances	/

Article Number	ELP-06V
Number Of Contacts	6
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style
Applicable Wire Size	͠͠ mm²
Connection Type	Wire to Wire Connectors
Pitch / Style	4.50 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	300 V
Remark	Secure locking device
Extra Information	/

Article Number	ELP-09V
Number Of Contacts	9
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style
Applicable Wire Size	͠͠ mm²
Connection Type	Wire to Wire Connectors
Pitch / Style	4.50 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	300 V
Remark	Secure locking device
Extra Information	/

Article Number	ELP-12V
Number Of Contacts	12
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style
Applicable Wire Size	͠͠ mm²
Connection Type	Wire to Wire Connectors
Pitch / Style	4.50 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	300 V
Remark	Secure locking device
Extra Information	/

Article Number	ELP-15V
Number Of Contacts	15
Upper Temperature	+90 °C
Lower Temperature	-25 °C
General Description	4.5mm Pitch Disconnectable Crimp Style
Applicable Wire Size	͠͠ mm²
Connection Type	Wire to Wire Connectors
Pitch / Style	4.50 mm
Rated Current (ac/dc)	10 A
Rated Voltage (ac/dc)	300 V
Remark	Secure locking device
Extra Information	/

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

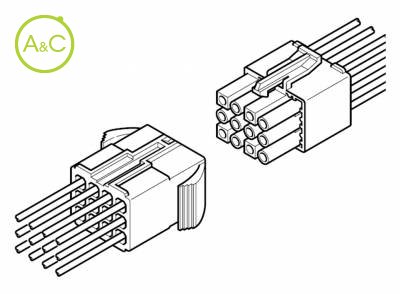

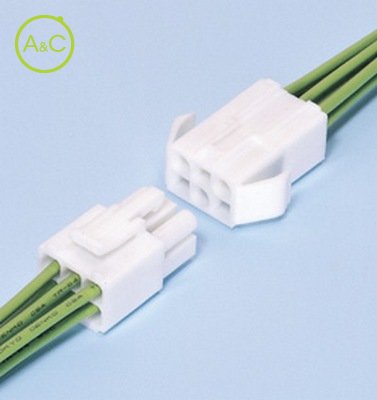

The contacts for the compact EL connector can be easily inserted into the connector housings. The plug housing and the receptacle housing can be smoothly mated even if they are mechanically distorted. Easy insertion and secure installation of contacts Each contact has a pair of locking lances so that the contact can be installed and symmetrically locked in the housing. A lance retraction prevention mechanism is also provided so that the contact will be securely held in the housing. The lances have sufficient clearance to allow the contacts to be easily inserted into the housing. A smooth connection even when pried during mating The contact is held by the housing along a wide surface area. This reduces the deflection of the contact and ensures a smooth, safe connection even when pried during mating. Durable arm lock mechanism The arm lock mechanism of the housing is slit to prevent stress concentration during connection. Thus, it is highly durable and will survive repeated matings. Two contact styles Two different kinds of crimp contacts are available for convenient branching or internal jumpering. Standards UL Recognized E60389 CSA Certified LR20812 TUV R75052 RoHS Compliant
