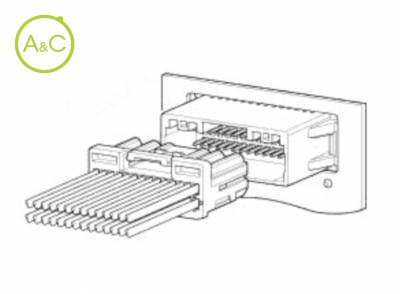

Male Connector for BMD Connector

  • BMD CONNECTOR
Download Datenblatt

Number Of Poles

  • 28
Article Number EM28B-BMDK-01A (M)
Number Of Contacts 28
Upper Temperature +105 °C
Lower Temperature -30 °C
General Description 2.20mm Pitch Disconnectable Crimp Style
Connection Type Automotive
Pitch / Style 2.20 mm
Rated Current (ac/dc) 5 C, DC (0.5mm2, Single Circuit) A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Surface mounting type connector of bottom entry type developed for instruments for automobile. High reliability Using the tried and true terminal ensures high performance and high reliability. The retainer (secondary lock) is provided for automobile, and reliability is improved. Surface mounting Corresponding to the surface mounting, workability is improved. RoHS Compliant
