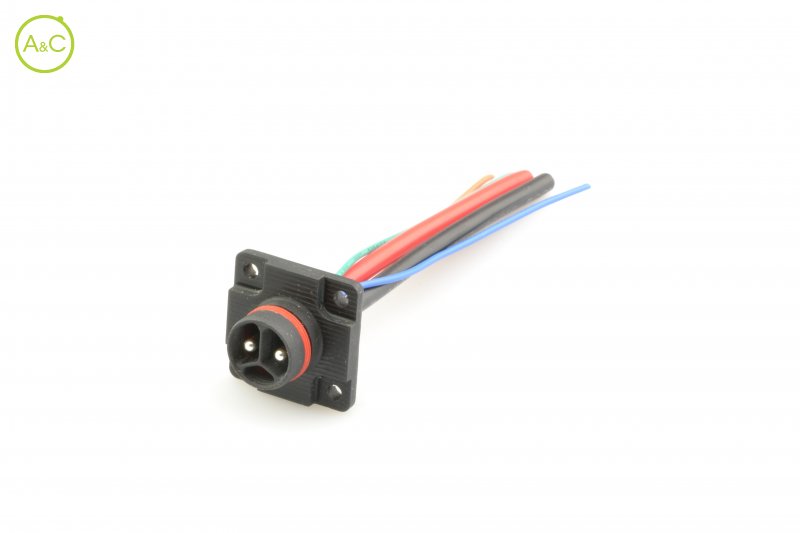

Male panel mount connector

  • Push-on flexible

Number Of Poles

  • 6 (2+4)
Article Number F618AG C 00 GA 0300
Color Black

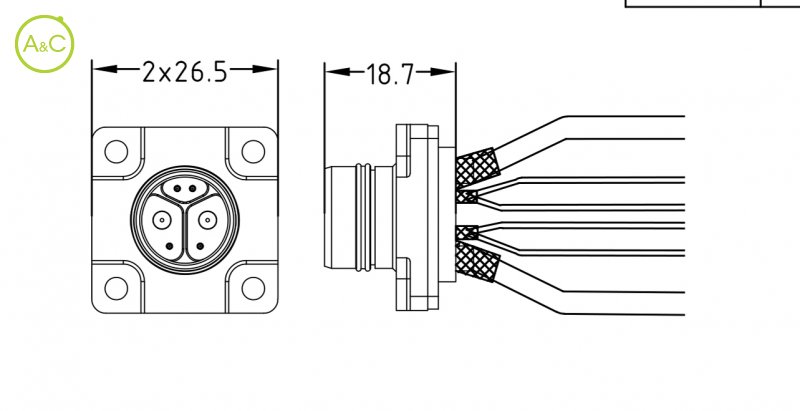

Connector Diameter 26,5 x 26,5 mm
Wire Section 2 x 3,3 + 4 x 0,2 mm²
Cable Length 300 mm
Protection Degree IP67
Mating Cycles 3000 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper alloy
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 30 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Silver plated
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
