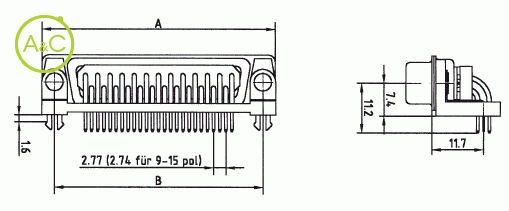

Connectors with ferrite plates dip solder 90° version

  • With mounting bracket, grounding clip and UNC 4-40 thread
  • With turned contacts
Download Datenblatt

Number Of Poles

  • 9
  • 15
  • 25
  • 37
Article Number FP 09 56 G.R4B FP 09 66 G.R4B
Number Of Contacts 9 9
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 100 100
Remark For the requested quality class please replace the "." at the end of the article no. By using 1,2,3 For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Remark *** For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4 For the requested Thread type please replace the "4" (standard) at the end of the article no. By using 3 or 4
Insulation Resistance 1 MΩ 1 MΩ
Extra Information The economical EMC solution for low loss The economical EMC solution for low loss
Thread Type 3 = M3 4= UNC-4-40 3 = M3 4= UNC-4-40
Current Rating Max. 5 Max. 5
Gender Male Female
Test Voltage U Eff 200 200
Quality Class* Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
Capacitor Values**** 01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types 01 = 2000 pF 02= 1000 pF 03= 500 pF 04= 250 pF 05= 120 pF 06= 43 pF 07= 22 pF 08= 15 pF 09 = 2 pF (available for non-filters pins) 10 = customized types
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
