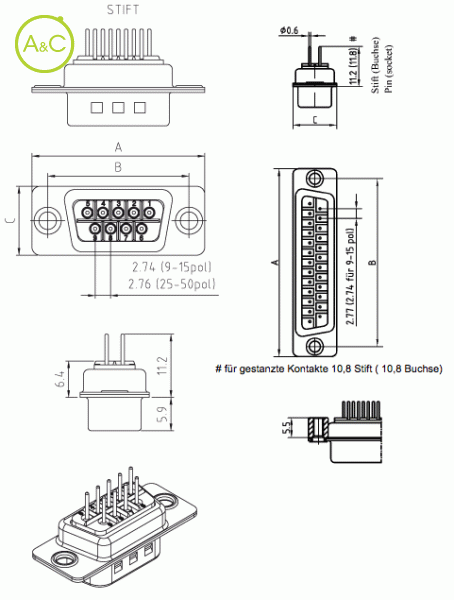

Dip solder version 180°

With threaded rivet UNC 4-40
Shell tin-plated, stamped

G45DT 09 152 G.T

G45DT 09 152 G.T

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Number Of Poles

9
15
25
37
50

Article Number	G45DT 09 152 G.T	G45T 09 162 G.T
Number Of Contacts	9	9
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	Straight dip solder	Straight dip solder
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles

Article Number	G45DT 15 152 G.T	G45T 15 162 G.T
Number Of Contacts	15	15
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	Straight dip solder	Straight dip solder
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles

Article Number	G45DT 25 152 G.T	G45T 25 162 G.T
Number Of Contacts	25	25
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	Straight dip solder	Straight dip solder
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles

Article Number	G45DT 37 152 G.T	G45T 37 162 G.T
Number Of Contacts	37	37
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	Straight dip solder	Straight dip solder
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles

Article Number	G45DT 50 152 G.T	G45T 50 162 G.T
Number Of Contacts	50	50
Upper Temperature	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy
Remark	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3	For the requested quality class please replace the "." at the end of the article no. By using 1,2,3
Test Voltage	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ
Current Rating	5	5
Contact Resistance	≤ 10 m	≤ 10 m
Gender	Male	Female
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	Straight dip solder	Straight dip solder
Quality Class*	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles	Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles
