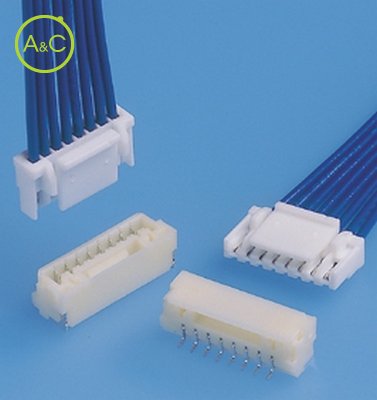

Housing for GH Connector

  • GH CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
Article Number GHR-02V-S
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.25mm Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.25 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Remark Secure locking device
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

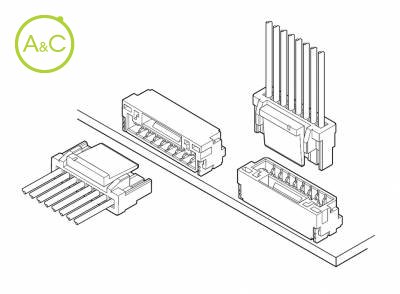

Developed for PDP, LCD or small electronics equipment. This low insertion type connector realizes easier mating operation. The basic concept of the contact part of this connector is equivalent to the performance proven SHL connector. Secure locking structure This innovative housing lock design achieves a locking device which is easy to handle as well as secure. Contact lock structure A contact lock provides a good 'click feeling' when mated, which prevents improper mating during assembly. Prevent deformation of contacts Fork-shaped header contacts are supported by grooves on the housing walls designed to prevent deformation of contacts. Standards UL Recognized E60389 RoHS Compliant
