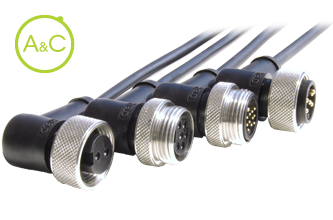

Female power connector

Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 14
Article Number HDMF 00201 701 2000 HDMH 00201 701 2000
Number Of Contacts 2 2
Protection Degree IP65* IP65*
Upper Temperature +80 °C +80 °C
Lower Temperature -40 °C -40 °C
Housing Material TPU TPU
Housing Oil Resistance Very good Very good
Contact Material Golden over nickel plated CuZn Golden over nickel plated CuZn
Locking Nut Material Brass nickel plated Brass nickel plated
Overvoltage Category II II
Voltage Vdc 1 to 600*** 1 to 600***
Voltage Vac 1 to 600*** 1 to 600***
Max. Currrent 12 A @40°C 12 A @40°C
Contact Gender F F
Thread Gender F M
Ground Pole No No
Max. Number Wires 2 2
Wire Colour bn1, bu2 bn1, bu2
Remark The protection degree level is guaranteed only when correctly assembled with Shield's couterpart The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark *** With polution degree 3, the maximum voltage is 300 Vac With polution degree 3, the maximum voltage is 300 Vac
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
