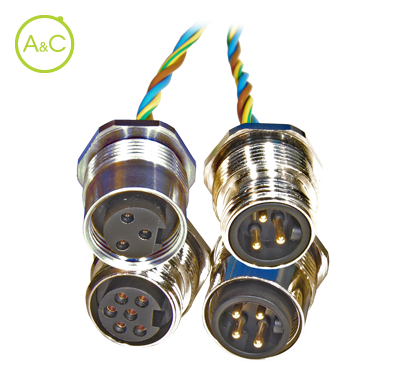

Female power receptacle

Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 14
Article Number HDSF 00201 6A7 0200 000 HDSH 00201 6A7 0200 000
Number Of Contacts 2 2
Protection Degree IP67 (only frontal side)* IP67 (only frontal side)*
Upper Temperature +80 °C +80 °C
Lower Temperature -40 °C -40 °C
Housing Material Nickel plated brass Nickel plated brass
Contact Material Golden over nickel plated CuZn Golden over nickel plated CuZn
Overvoltage Category II II
Voltage Vdc 1 to 600*** 1 to 600***
Voltage Vac 1 to 600*** 1 to 600***
Max. Currrent 12 A @40°C 12 A @40°C
Contact Gender F F
Thread Gender F M
Ground Pole No No
Max. Number Wires 2 2
Wire Colour bn1, bu2 bn1, bu2
Remark The protection degree level is guaranteed only when correctly assembled with Shield's couterpart The protection degree level is guaranteed only when correctly assembled with Shield's couterpart
Remark *** With polution degree 3, the maximum voltage is 300 Vac With polution degree 3, the maximum voltage is 300 Vac
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
