Plug Housing For Socket Contact

  • HL CONNECTOR
Download Datenblatt

Number Of Poles

  • 4
  • 8
  • 12
Article Number HLP-04V
Number Of Contacts 4
Upper Temperature +90 °C
Lower Temperature -25 °C
General Description 3.96mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type Printed Circuit Board Connectors
Pitch / Style 3.96 mm
Rated Current (ac/dc) 7.0 A
Rated Voltage (ac/dc) 300 V
Pcb Mount Style Through-hole Technology (THT)
Remark Secure locking device
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

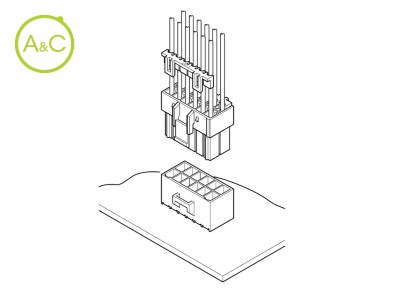

The HL connectors can be used for wire-to-wire or wire-to-board connections. The inter-housing lock secures the plug to the receptacle and prevents accidental diSConnection. Secondary retainers (optional). Housing lances for contact retention Since the contact retention lances are part of the housing rather than protruding from the contact, they cannot be damaged by handling. They allow the contact to be easily inserted and securely locked into the housing. Secondary retainer The secondary retainer is optionally available. This retainer ensures that the contacts are fully seated and locked in the housing and prevents their accidental release. Installed after the contacts are inserted, the secondary retainer locks and secures the contacts. Inner-housing lock The inner-housing lock secures the plug to the receptacle and prevents accidental diSConnection. The lock is protected and is not affected by external forces that might result from the routing of wires during assembly. Low insertion force contact The low insertion force contacts reduce surface finish wear and reduce the effects fo stress relaxation. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R9551072 RoHS Compliant
