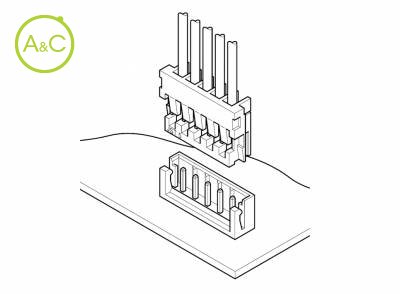

Receptacle Housing

  • HR CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
  • 6
  • 8
  • 12
Article Number HRP-02-S
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.5mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 3 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Thin design. The dimple in the contact ensures positive contact. Metallic strain relief. The same header can be used for either the HR insulation displacement connector or the EH crimp style connector. Ultra-thin design 11.3mm (.445") mounting height with a width of just 4.1mm (.161"), housing configuration is identical to that of the HR series insulation displacement connector. High reliability The contact design ensures a continuous gas tight connection and is ideal for low current, low voltage application. In addition, it is extremely resistant to vibration. Interchangeability This connector is fully interchangeable with both the EH crimp style connector and the HR insulation displacement connector. One advantage this connector has over the HR insulation displacement connector is that it allows cross wiring. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
