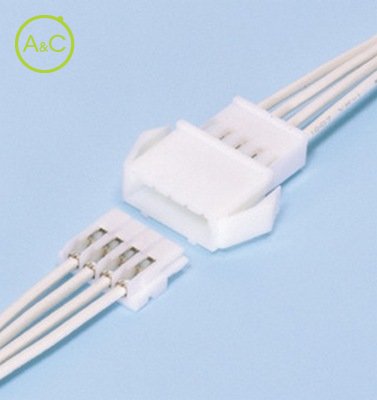

Receptacle Housing

  • HM CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
  • 8
  • 12
Article Number HRP-02-S
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.5mm Pitch Disconnectable Crimp Style
Connection Type Wire to Wire Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 2 3 A
Rated Voltage (ac/dc) 250 V
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

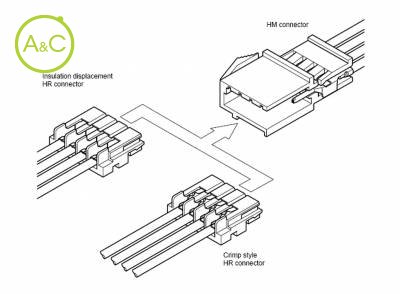

Matable with HR receptacles. Both crimp style and insulation displacement receptacles can be used Both crimp style and insulation displacement HR connector receptacles can be accommodated by the HM connector. Housing-to-terminal locks Spring action housing-to-terminal locks are an inherent part of the housing, and assure smooth contact insertion and firm contact retention yet with low insertion force. Mountable on a variety of panels Due to our unique panel installation locking mechanisms, the housing can be easily installed on panels of various thicknesses without using tools. Highly reliable housing construction Since all of the contacts are individually and totally surrounded by housing walls, the contacts are protected from deformation from outside sources of stress or from mismating. The polarized housing shape prevents reverse connection. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
