Receptacle AWG#28 Green

  • HR CONNECTOR
Download Datenblatt

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
Article Number 02HR-8M-P-N
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2.5mm Pitch Disconnectable IDC
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.50 mm
Rated Current (ac/dc) 2 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

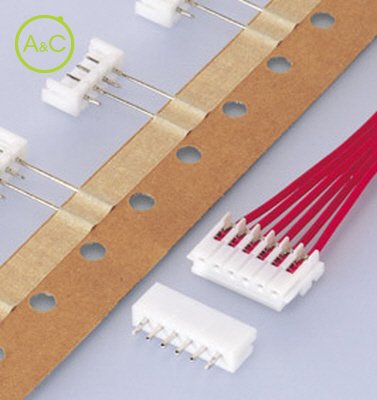

This 2.5mm (.098") pitch connector for printed circuit boards has an ultra-thin construction. The in-line method provides high-density capability to the end user. Twin U-slot insulation displacement section The insulation displacement section has reliable twin U-slots like those of JST's other insulation displacement connectors. Ultra-thin design The connector is very small, with a mounting height of 11.3mm (.445") and a width of 4.1mm (.161"). High reliability The contact has a dimple where it mates with the post to ensure a continuous gas tight connection when used for circuits requiring minute amounts of current and voltage. In addition, it is built to withstand vibration and prevent deformation. Strain relief A metallic strain relief secures the wire so as to protect the insulation displacement connection against vibration, impact and other external forces. Interchangeability The shrouded header is interchangeable with the 2.5mm (.098") pitch crimp style EH connectors. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R50082349 RoHS Compliant
