IDC connectors with double-contacting

Download Datenblatt

Number Of Poles

  • 9
  • 15
  • 25
  • 37
  • 50

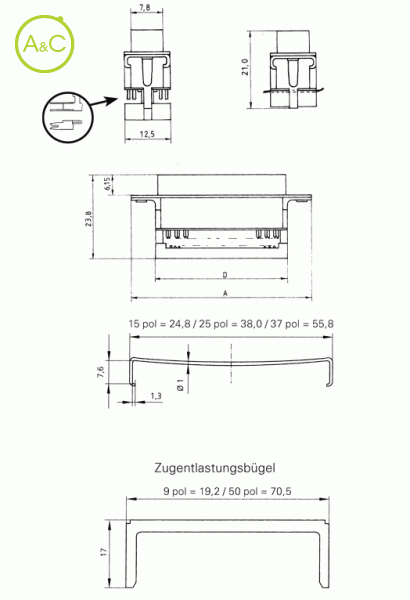

Article Number IKDT 09 154 G 075* IKT 09 164 G 075
Number Of Contacts 9 9
Upper Temperature + 125 °C + 125 °C
Lower Temperature -55 °C -55 °C
Contact Plating Gold over Nickel, or selective gold Gold over Nickel, or selective gold
Contact Material Brass and Copper alloy Brass and Copper alloy
Remark The following connector designs are available as well: IKDT 09 154 G 075-3 with threaded rivet M3 IKDT 09 154 G 075-4 with threaded rivet UNC 4-40 IKDT 09 154 G 075-V with floating connection /
Test Voltage 1 V ~ 1 V ~
Insulation Resistance 1010 MΩ 1010 MΩ
Extra Information UL approval useful for difficult contacting in the cutting/fixing area UL approval useful for difficult contacting in the cutting/fixing area
Current Rating 5 5
Contact Resistance ≤ 10 m ≤ 10 m
Gender Male Female
Insulator Material Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell Steel, tin-plated Steel, tin-plated
Mating And Unimating Force 0.3 - 0.7 0.3 - 0.7
Air And Creepage Distance ≥ 0.9 mm, VDE 0110 rated ≥ 0.9 mm, VDE 0110 rated
Termination Type IDC IDC
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
ZEB 09
IDC connectors with double-contacting
ZEF 15
IDC connectors with double-contacting
ZEF 25
IDC connectors with double-contacting
ZEF 37
IDC connectors with double-contacting
ZEB 50
IDC connectors with double-contacting
