SMT Fine Wire Connectors

Packaging

  • Loose
  • Small reeled
  • Taped

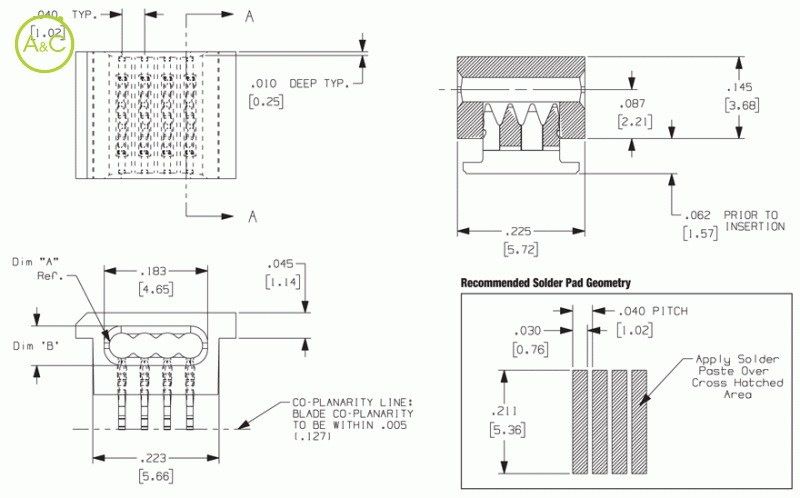

Article Number IPC-4-35 IPC-4-45
Contact Plating 100% Tin over Copper 100% Tin over Copper
Contact Material C26000 Brass C26000 Brass
Insulation Resistance > 1 x 109Ω @ 500 VDC MΩ > 1 x 109Ω @ 500 VDC MΩ
Current Rating 2 Amperes 2 Amperes
Wire Accommodation From 32 AWG to 28 AWG solid, stranded or tinsel wire; with insulation diameter of 0.025" - 0.032" From 32 AWG to 26 AWG solid, stranded or tinsel wire; with insulation diameter of 0.033" - 0.043" IPC-4-45 has an ID chamfer in the plastic housing.
Contact Resistance < 20 mΩ < 20 mΩ
Withstanding Voltage 500 VRMS @ Sea Level 500 VRMS @ Sea Level
Insulation Material PPS GS-40 40% glass filled PPS GS-40 40% glass filled
Ul Flammability Rating 94V-0 94V-0
Termination Force Approx. 80 lbs (for 4 wire) Approx. 80 lbs (for 4 wire)
Reflow Temperature 500°F Max (260°C Max) 500°F Max (260°C Max)
Operating Temperature -67°F to 221°F (-55°C to 105°C) -67°F to 221°F (-55°C to 105°C)
Pieces Per Reel (loose Part No.) NA NA
Pieces Per Reel (taped Part No.) / /
Pieces Per Reel (small Reel Part No.) / /
Datenblatt Download Datenblatt Download Datenblatt
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
