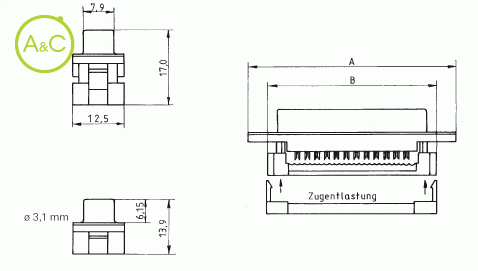

IDC connectors low profile

Download Datenblatt

Number Of Poles

  • 9
  • 15
  • 25
  • 37
Article Number ISDT 09 154 G 3 IST 09 164 G 3
Number Of Contacts 9 9
Upper Temperature + 125 °C + 125 °C
Lower Temperature -55 °C -55 °C
Contact Plating Gold over Nickel, or selective gold Gold over Nickel, or selective gold
Contact Material Brass and Copper alloy Brass and Copper alloy
Test Voltage 1 V ~ 1 V ~
Insulation Resistance 1010 MΩ 1010 MΩ
Extra Information With strain relief With threaded rivet on request With strain relief With threaded rivet on request
Current Rating 5 5
Contact Resistance ≤ 10 m ≤ 10 m
Gender Male Female
Insulator Material Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell Steel, tin-plated Steel, tin-plated
Mating And Unimating Force 0.3 - 0.7 0.3 - 0.7
Air And Creepage Distance ≥ 0.9 mm, VDE 0110 rated ≥ 0.9 mm, VDE 0110 rated
Termination Type IDC IDC
Quality Class Class 3 = 50 mating cycles Class 3 = 50 mating cycles
Usable Cable AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A AWG 28, stranded wire cable lead spacing 1,27 ± 0,02 Insulation hardness: max. 90 shore A
