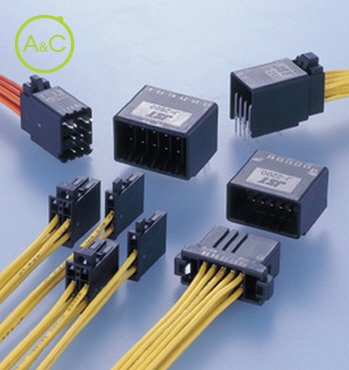

Receptacle Housing Module

JFA CONNECTOR J2000 Series

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	J25MF-02V-K
Number Of Contacts	2
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Factory Automation Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	4.6 A
Rated Voltage (ac/dc)	250 V

Article Number	J25MF-04V-K
Number Of Contacts	4
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Factory Automation Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	4.6 A
Rated Voltage (ac/dc)	250 V

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

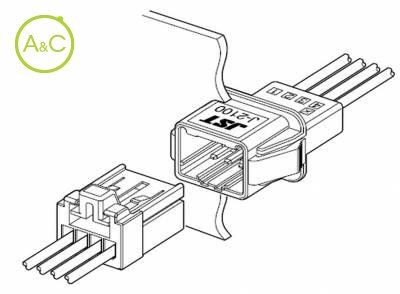

2.5mm (.098") pitch double-row connector for miniaturization of electronic equipment. Receptacle contacts are designed to be common with all JFA connector J2000 series. Double-spring construction Double-spring construction realizes stable contact performance. In addition, the length of contact is shortened to miniaturize connector. Housing lance Housing lance assures stable assembly and smooth insertion even in thin wire. Clear "click feeling" Clear feeling of click when mating connector can be realized, secure engagement. Standards UL Recognized E60389 RoHS Compliant
