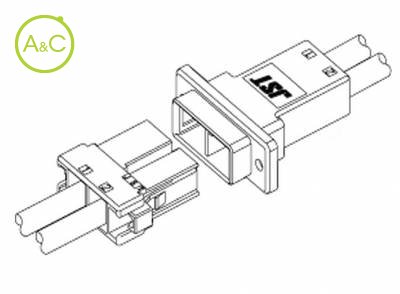

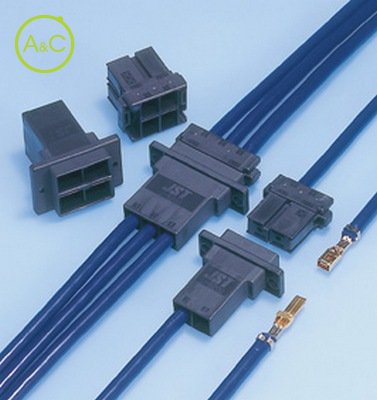

Tab Housing Panel Mounting

JFA CONNECTOR J5000 series

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	J5MSP-02V-KX	J5MSP-02V-KY
Number Of Contacts	2	2
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C
General Description	11.0mm pitch Disconnectable Crimp Style (Wire to Wire)	11.0mm pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	11.00 mm	11.00 mm
Rated Current (ac/dc)	50 A	50 A
Rated Voltage (ac/dc)	600 V	600 V
Remark	X Keying	Y Keying

Article Number	J5MSP-03V-KX	J5MSP-03V-KY
Number Of Contacts	3	3
Upper Temperature	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C
General Description	11.0mm pitch Disconnectable Crimp Style (Wire to Wire)	11.0mm pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	11.00 mm	11.00 mm
Rated Current (ac/dc)	50 A	50 A
Rated Voltage (ac/dc)	600 V	600 V
Remark	X Keying	Y Keying

Article Number	J5MMP-04V-KXX	J5MMP-04V-KXY	J5MMP-04V-KYY
Number Of Contacts	4	4	4
Upper Temperature	+105 °C	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C	-55 °C
General Description	11.0mm pitch Disconnectable Crimp Style (Wire to Wire)	11.0mm pitch Disconnectable Crimp Style (Wire to Wire)	11.0mm pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Factory Automation Connectors	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	11.00 mm	11.00 mm	11.00 mm
Rated Current (ac/dc)	50 A	50 A	50 A
Rated Voltage (ac/dc)	600 V	600 V	600 V
Remark	XX Keying	XY Keying	YY Keying

Article Number	J5MMP-06V-KXX	J5MMP-06V-KXY	J5MMP-06V-KYY
Number Of Contacts	6	6	6
Upper Temperature	+105 °C	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C	-55 °C
General Description	11.0mm pitch Disconnectable Crimp Style (Wire to Wire)	11.0mm pitch Disconnectable Crimp Style (Wire to Wire)	11.0mm pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Factory Automation Connectors	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	11.00 mm	11.00 mm	11.00 mm
Rated Current (ac/dc)	50 A	50 A	50 A
Rated Voltage (ac/dc)	600 V	600 V	600 V
Remark	XX Keying	XY Keying	YY Keying

Article Number	J5MMP-10V-KXX	J5MMP-10V-KXY	J5MMP-10V-KYY
Number Of Contacts	10	10	10
Upper Temperature	+105 °C	+105 °C	+105 °C
Lower Temperature	-55 °C	-55 °C	-55 °C
General Description	11.0mm pitch Disconnectable Crimp Style (Wire to Wire)	11.0mm pitch Disconnectable Crimp Style (Wire to Wire)	11.0mm pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type	Factory Automation Connectors	Factory Automation Connectors	Factory Automation Connectors
Pitch / Style	11.00 mm	11.00 mm	11.00 mm
Rated Current (ac/dc)	50 A	50 A	50 A
Rated Voltage (ac/dc)	600 V	600 V	600 V
Remark	XX Keying	XY Keying	YY Keying

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

One touch mating and unmating connector corresponding to high current. Modular type is also available. High current capacity This connector is a high current carrying capacity of 50A max. (1 circuit/AWG #8) Easy mating connector This connector is realized low insertion and withdrawal force due to JFA connector contacts common structure, which facilitates easy mating connector. Standards UL Recognized E60389 RoHS Compliant

Zubehör

J5KP-VY

Keying Plug for JFA Connector J5000 series
