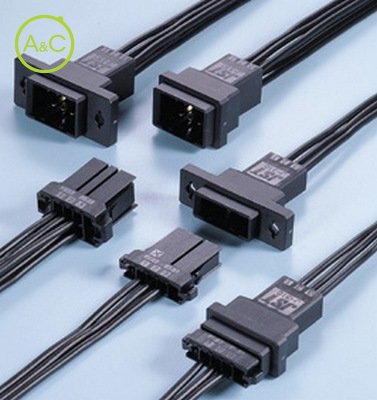

Receptacle Housing Double Row

  • JFA CONNECTOR J300 Series
Download Datenblatt

Number Of Poles

  • 6
  • 8
  • 10
  • 12
  • 16
  • 20
Article Number F31FDS-06V-K
Number Of Contacts 6
Upper Temperature +105 °C
Lower Temperature -55 °C

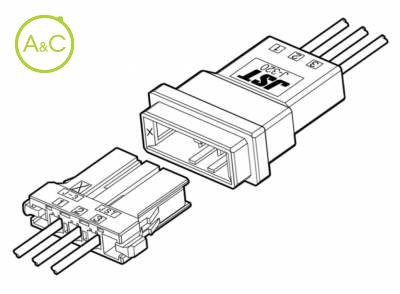

General Description 3.81mm Pitch Disconnectable Crimp Style (Wire to Wire)
Connection Type Factory Automation Connectors
Pitch / Style 3.81 mm
Rated Current (ac/dc) 15 A
Rated Voltage (ac/dc) 250 V
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Connectors for signal circuits or power supply circuits, applicable to the factory automation, heavy electric machinary, and other industrial equipment in general. In spite of the various kinds of housings available, their contacts are designed to be common. Thus the applicable tooling can be unified. Double-spring construction For superior contact reliability, the receptacle contact has a double-string construction consisting of a main spring and a contact pressure adjustment spring. In addition, a spring stopper is incorporated in the connector to facilitate resistance to excessive pressure. Housing lances Lances are incorporated into the housing design to secure the contacts, therefore keeping contact insertion force low and avoiding contact deformation. Secure locking method When housings are mated, a clear locking sound can be heard to ensure secure engagement. Recognition mark Both contacts and application tools have identification marks to prevent incorrect combinations. Standards UL Recognized E60389 CSA Certified LR20812 TUV J-50015641 RoHS Compliant
