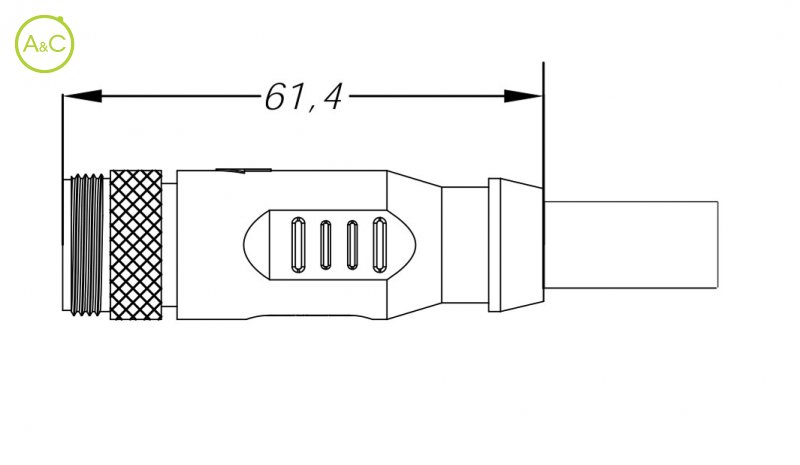

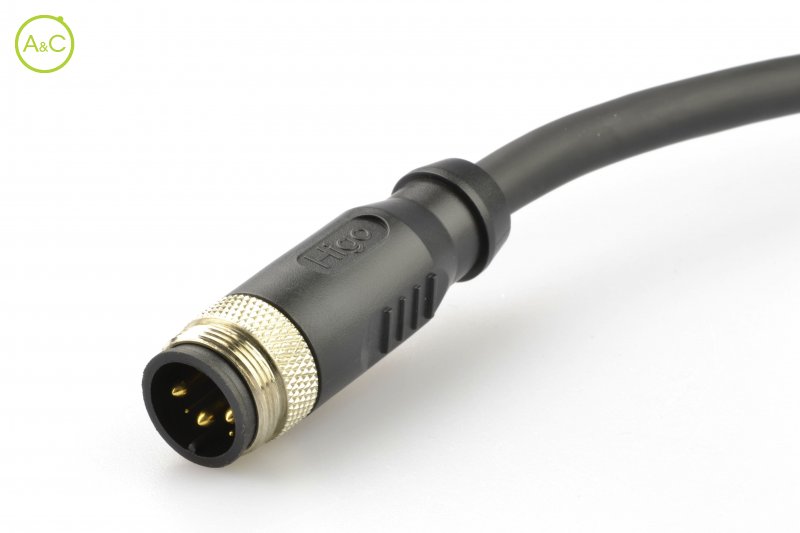

Male cable connector

Download Datenblatt Download Datei

Number Of Poles

  • 10 (3+7)
Article Number L1019AG P 00 AZ 1000
Color Black
Connector Diameter 19 mm
Wire Section 3 x 4,0 + 7 x 0,14 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Brass
Cable Diameter 8.5 mm
Insulation Wire Teflon
Remark Other cable length/type on request
Rated Current 30 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 114 mm
Material Jacket PVC
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
