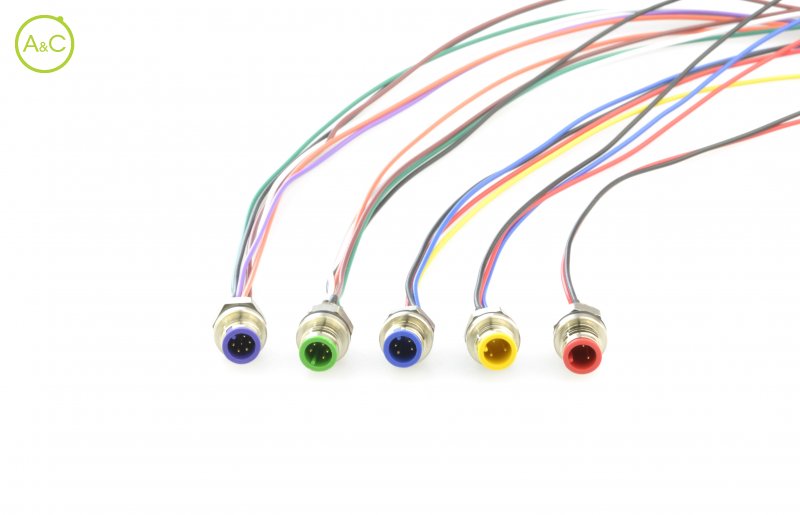

Male panel mount connector

  • Screw Locking

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
Article Number L209CG C 03 00 0300
Color Red
Connector Diameter 10 mm
Wire Section 2 x 0,2 mm²
Cable Length 300 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor Bronze
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
