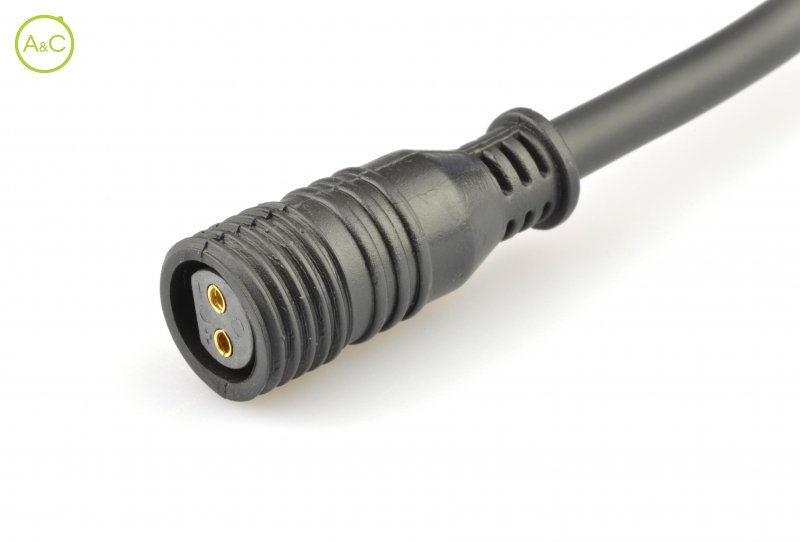

Female cable connector

Download Datenblatt Download Datei

Number Of Poles

  • 2
Article Number L218AM P 00 AM 1000
Color Black
Connector Diameter 19 mm
Wire Section 2 x 2,5 mm²
Cable Length 1000 mm
Protection Degree IP66 / IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Cable Diameter 7 mm
Insulation Wire Teflon
Remark Other cable length/type on request
Rated Current 25 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold
Fitting Length 75 mm
Material Jacket PVC
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
