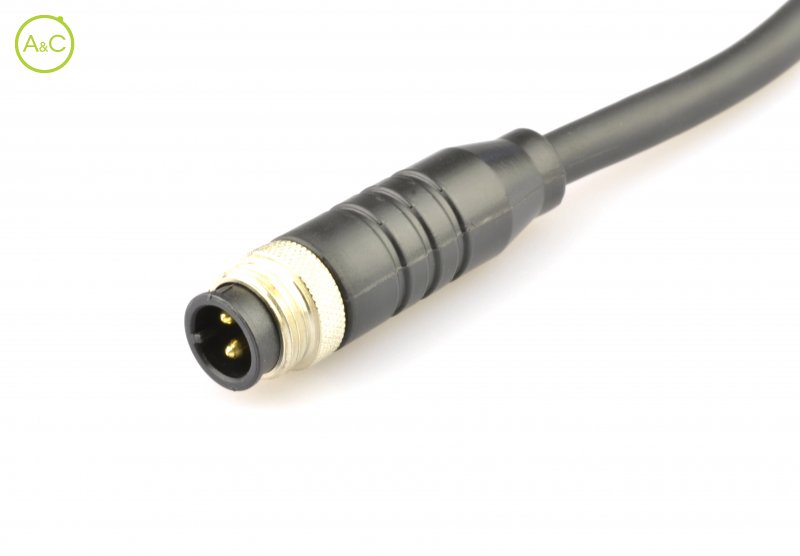

Male cable connector

Download Datenblatt Download Datei

Number Of Poles

  • 3 (2+1)
  • 4 (2+2)
  • 5 (2+3)
Article Number L313AG P 00 AR 1000
Color Black
Connector Diameter 13 mm
Wire Section 2 x 2,0 + 1 x 0,5 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Copper Alloy
Cable Diameter 5.8 mm
Insulation Wire Teflon
Remark Other cable length/type on request
Rated Current 20 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 87.3 mm
Material Jacket PVC
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
