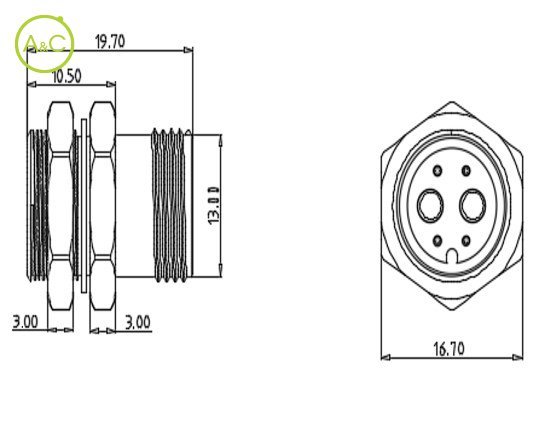

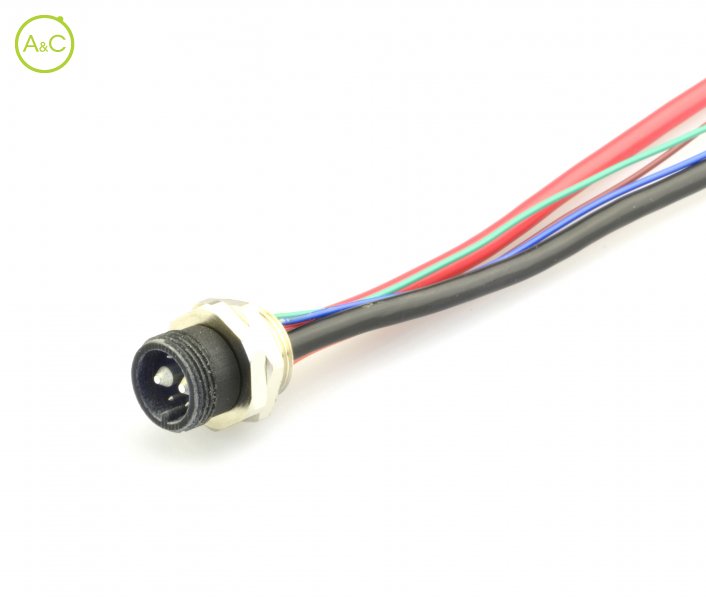

Male front panel mount connector

Number Of Poles

  • 6(2+4)
Article Number L615AG C 03 DR 0300
Color Black
Connector Diameter 16.7 mm
Wire Section 2 x 4,0 + 4 x 0,2 mm²
Cable Length Single wires 300 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor bronze
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 40 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
