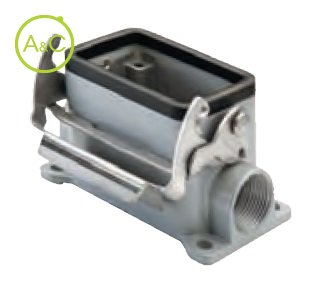

Surface mounting housings

  • With single lever in stainless steel
  • Aluminium, Metric entry
Download Datenblatt

Entry

  • 1xM20
  • 2xM20
Article Number M7P 06 L20
Protection Degree IP67
Material Housing Aluminium
Height 53 mm
Length 82
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 52 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
