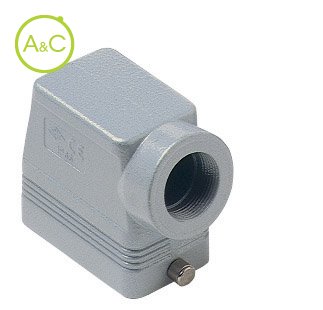

Hoods with 2 pegs, high construction

  • Side entry
  • Aluminium, Metric entry
Download Datenblatt

Entry

  • 1xM32
  • 1xM40
Article Number MAO 10 L32
Protection Degree IP66
Material Housing Aluminium
Height 70 mm
Length 73
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 43 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CHC 10 LG
Covers with 1 lever
