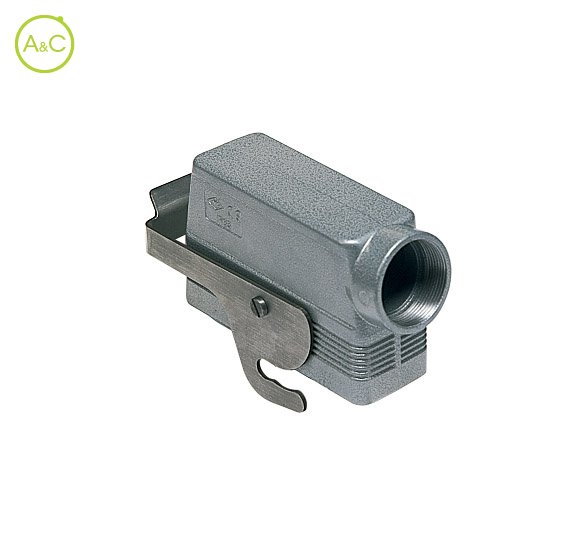

Hoods with central lever, high construction

  • Side entry
  • Aluminium, Metric entry
Download Datenblatt

Entry

  • 1xM32
  • 1xM40
Article Number MAO 16 YX32
Protection Degree IP65
Material Housing Aluminium
Height 76 mm
Length 93.5
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDHS 27 P + PE; CX 6+12 P + PE
Locking Mechanism Central clamp
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 43 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
