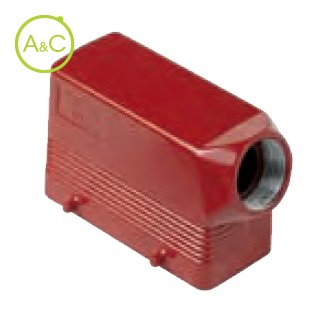

Hoods with pegs, high construction

  • Side entry
  • Aluminium, 1xM40
  • General
Article Number MAOR 24.40
Protection Degree IP65
Material Housing Aluminium
Height 76 mm
Length 120
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CNE…RY 24P+PE; CX…RY 4/8P+PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 180 °C
Position Cable Feed Side entry
Width 43 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CHCR 24 G
Cover with 2 levers
