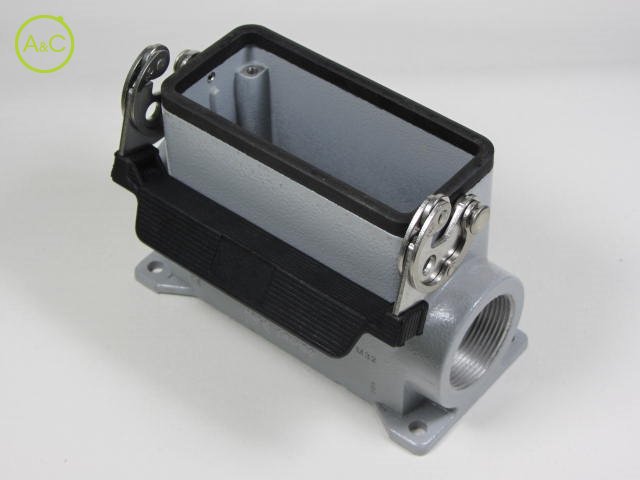

Surface mounting housings, high construction

  • With single lever
  • Aluminium, Metric entry
Download Datenblatt

Entry

  • 1xM25
  • 1xM32
  • 1xM40
  • 2xM25
  • 2xM32
  • 2xM40
Article Number MAP 06 L32
Protection Degree IP66
Material Housing Aluminium
Height 74 mm
Length 82
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 57 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CHC 06 L
Covers with pegs
CHC 06 SL
Covers with pegs
