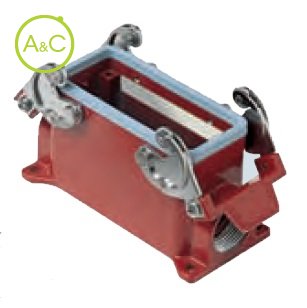

Surface mounting housings

  • With levers
  • Aluminium, 1xM32
  • General
Article Number MAPR 16.32
Protection Degree IP65
Material Housing Aluminium
Height 81 mm
Length 117
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CNE…RY 16P+PE; CP…RY 6P+PE; CX…RY 4/0P+PE; CX…RY 4/2P+PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 180 °C
Position Cable Feed Side entry
Width 57 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CHCR 16
Cover with 4 pegs
