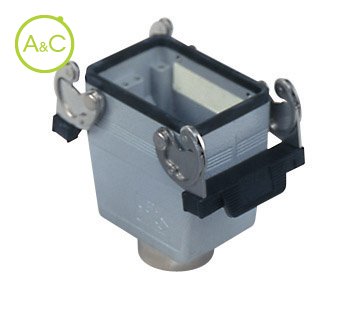

Hoods with 2 levers and gasket, high construction

  • Top entry
  • Aluminium, 1xM32
Download Datenblatt
  • General
Article Number MAV 50 G32
Protection Degree IP66
Material Housing Aluminium
Height 92 mm
Length 82
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 71 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
