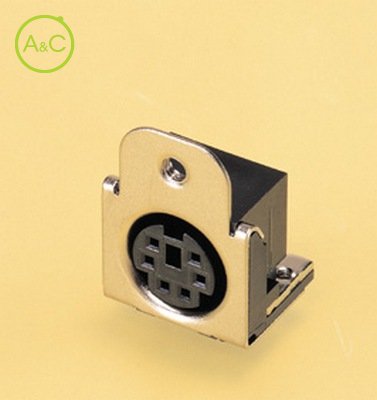

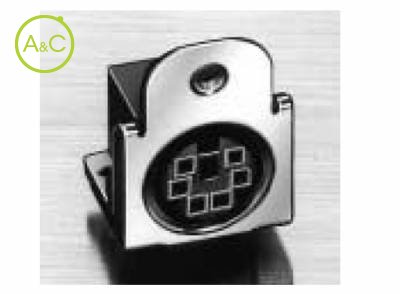

Miniature Circular Connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 6
| Article Number | MDS-S6300-11A19-14 |
| Number Of Contacts | 6 |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Connection Type | Interface Connection Connectors |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 125 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Front shielding construction.
A metal shielding cover integrating the connection part which connects to the plug's shell is used. Because there is no gap between the receptacle and the plug, this construction prevents the entry of space conductive noise.
Flange construction.
The flange construction allows the receptacle to be secured on the equipment chassis with SCrews, ensuring more reliable electrical connection.
RoHS Compliant
