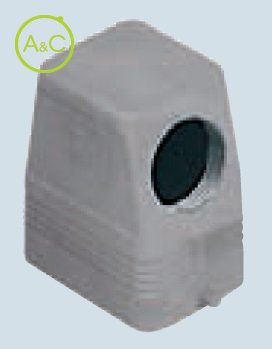

Hoods for electromagnetic compatibility with pegs

  • Side entry, high construction, without adaptor
  • Aluminium, 1xM32
Download Datenblatt
  • General
Article Number MFOS 06 L32*
Protection Degree IP66
Material Housing Aluminium
Height 72 mm
Remark Enclosure without adaptor, threaded on the body, to be used only with a complete cable gland
Length 60
Extra Information Corrosion resistant
EMC Version
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 43 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CHCS 06 LG
Cover for electromagnetic comptatibility with lever
