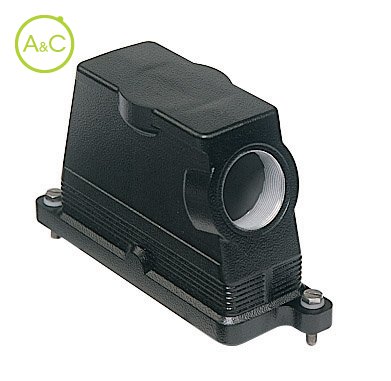

Hoods with side entry, screw locking

  • Aluminium
  • Metric entry
Download Datenblatt

Entry

  • 1xM32
  • 1xM40
  • 1xM50
Article Number MGO 16.32
Protection Degree IP68
Material Housing Aluminium
Height 111 mm
Length 166
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDHS 27 P + PE; CX 6+12 P + PE
Locking Mechanism Screw
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 58 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
