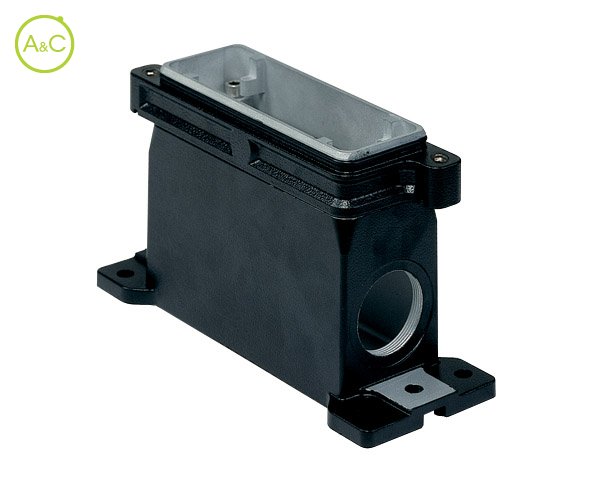

Surface mounting housings, screw locking

  • Aluminium
  • 1xM32
Download Datenblatt
  • General
Article Number MGP 10.32
Protection Degree IP68
Material Housing Aluminium
Height 110 mm
Length 169
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules;CDSH 18 P + PE
Locking Mechanism Screw
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Side entry
Width 58 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CGC 10
Cover for screw locking
