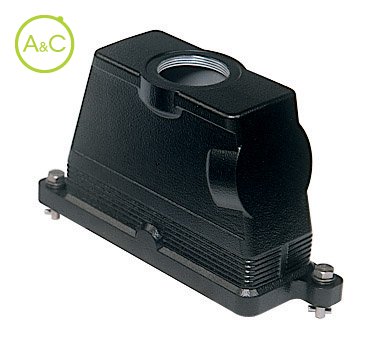

Hoods with top entry, Bayonet locking

  • Aluminium
  • Metric entry
Download Datenblatt

Entry

  • 1xM25
  • 1xM32
  • 1xM40
Article Number MGV 10.25 B
Protection Degree IP68
Material Housing Aluminium
Height 101 mm
Length 146
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules;CDSH 18 P + PE
Locking Mechanism Bayonet
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 58 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
